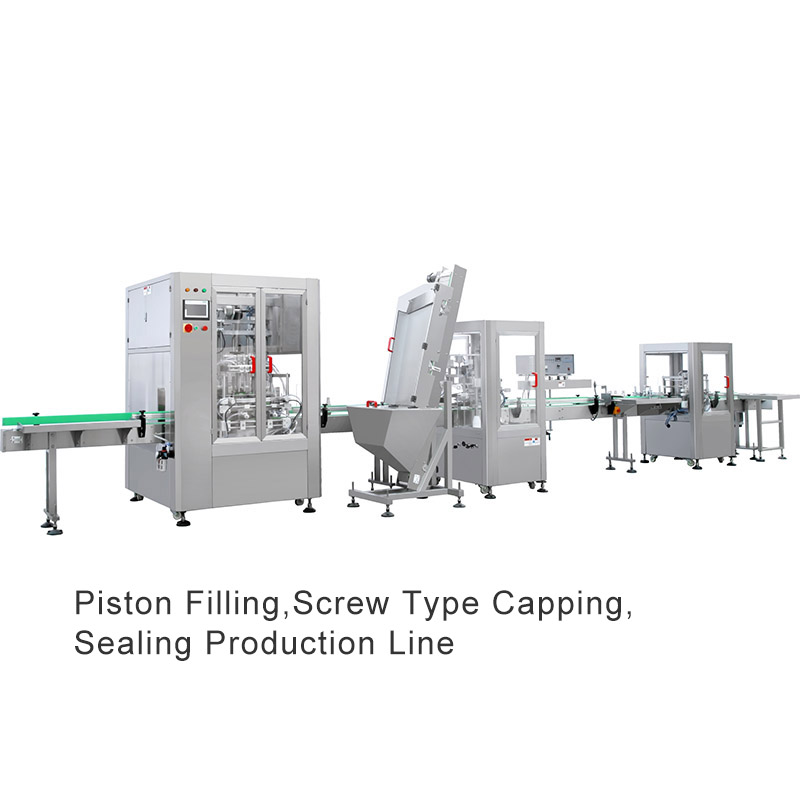

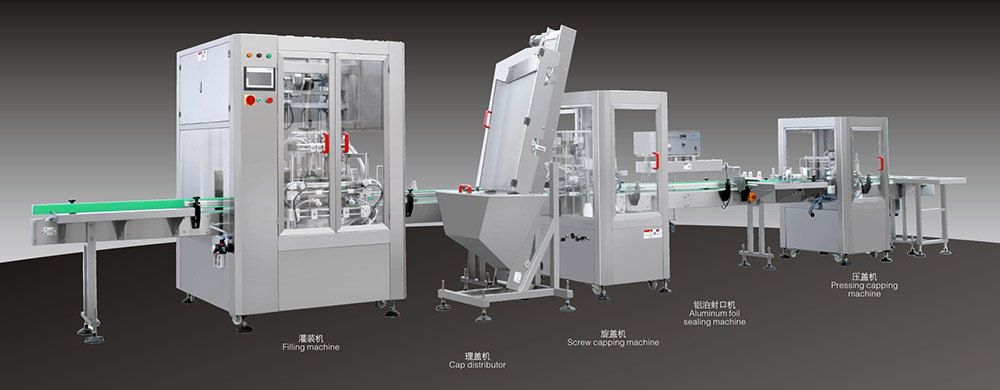

Piston Filling,Screw Type Capping,Sealing Production Line
This line suitable for liquid packing.
Welcome to sample consultation.

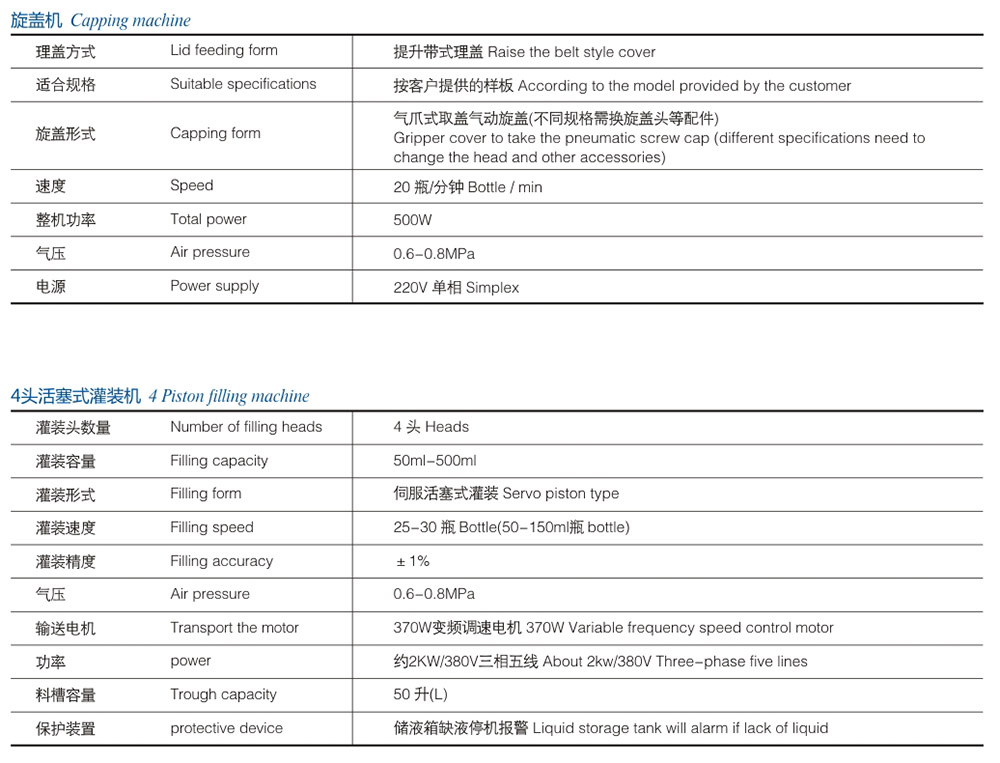

Capping Machine
Lid Feeding Form Raise the belt style cover
Suitable specifications According to customer's sample
Capping Form Gripper taking, pneumatic screwing(Optional)
Speed 20Bottle/min
Power 500W 1phase 220V
Air pressure 0.6-0.8Mpa
4 Piston Filling Machine
Number of filling nozzle 4
Filling capacity 50-500ml
Filling form Servo piston
Filling accuracy ±1%
Air pressure 0.6-0.8Mpa
Motor 370W Variable frequency speed control motor
Trough capacity 50L
Protective device Automatic liquid shortage alarm
此生产线适合液体产品包装。
旋盖机
理盖方式 提升带式理盖
适合规格 按客户提供的样板
旋盖形式 气爪式取盖 气动旋盖（不同规格需换选盖头等配件）
速度 20Bottle/min
电源功率 500W 1phase 220V
气压 0.6-0.8Mpa
4 Piston Filling Machine
Number of filling nozzle 4
Filling capacity 50-500ml
Filling form Servo piston
Filling accuracy ±1%
Air pressure 0.6-0.8Mpa
Motor 370W Variable frequency speed control motor
Trough capacity 50L
Protective device Automatic liquid shortage alarm
Power 2KW 3phase 380V
4头活塞式灌装机
灌装头数量 4
灌装容量 50-500ml
灌装形式 伺服活塞式
灌装精度 ±1%
气压 0.6-0.8Mpa
输送电机 370W变频调速电机
料槽容量 50L
保护装置 储液箱缺液停机报警
功率 2KW 3phase 380
