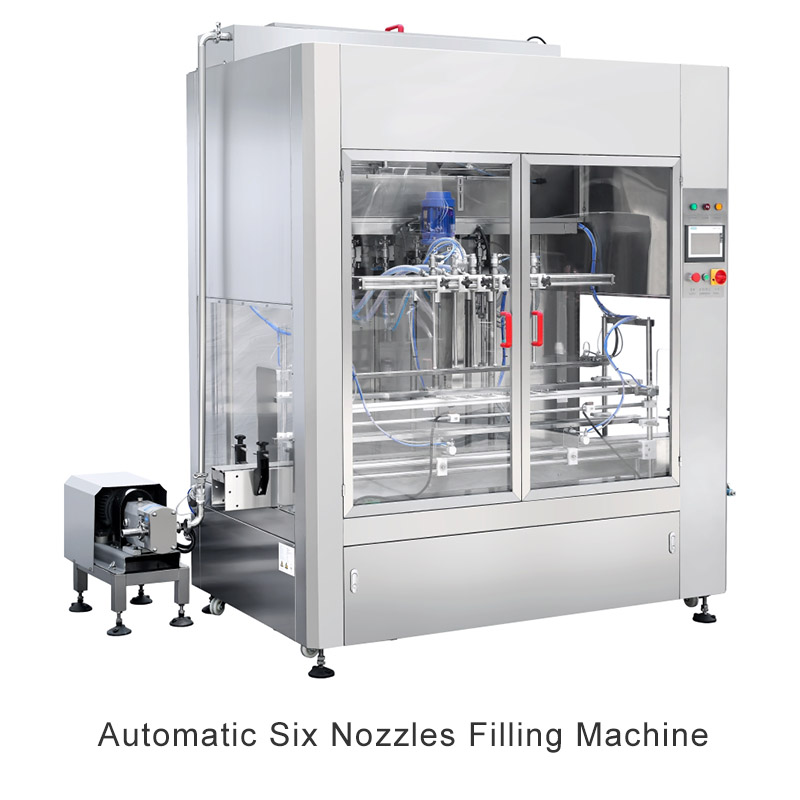

Rotary lobe pumps designed for handle from water-thin to viscid products.Specially for viscid and foamy liquid products in food,chemical,cosmetic,medical area.
*Machine construction is made by SUS# 304 and aluminum alloy.
*Mitsubishi PLC control system with digital touch screen.
*Volumetric filling system by rotary lobe pump driven by AC motor with inverters.
*Digital LCD touch screen display and setting.

Technical Parameters
Number of filling nozzle               6 (4 8 10 is optional)
Suitable bottle                           L:160-360mm
                                              W:140-260mm
                                              H:250-500mm
Diameter of bottleneck                ≥Φ40mm
Filling error                              ±15ml
Filling volume                            5L-50L
Production capacity                   ≦480bottles/hour
Power                                     3KW   220V/380V  50HZ/60HZ
Air pressure                              0.5Mpa-0.65Mpa clean and stably compressed air
Dimension                                2500x1700x2300mm



产品标题: 精油灌装贴标生产线
机器特点：
◆该喷头、滴管盖灌装旋盖机结构上暴扣了转盘进瓶、自动灌装、自动落喷头盖（滴管盖）、旋盖、贴标、收瓶这几个主要工步的装置。
◆该机分为转盘进瓶、蠕动泵灌装、落喷头盖（滴灌盖）、预旋盖、伺服旋盖、贴标、收瓶等几个操作。

技术参数
灌装头数                      6 (4 8 10 可选)
适用瓶子                      L:160-360mm
                                   W:140-260mm
                                  H:250-500mm
瓶口直径                      ≥Φ40mm
计量误差                      ±15ml
包装规格                       5L-50L
生产能力                        ≦480bottles/hour
功率                            3KW   220V/380V  50HZ/60HZ
配备气源                      0.5Mpa-0.65Mpa clean and stably compressed air
外形尺寸                       2500x1700x2300mm
