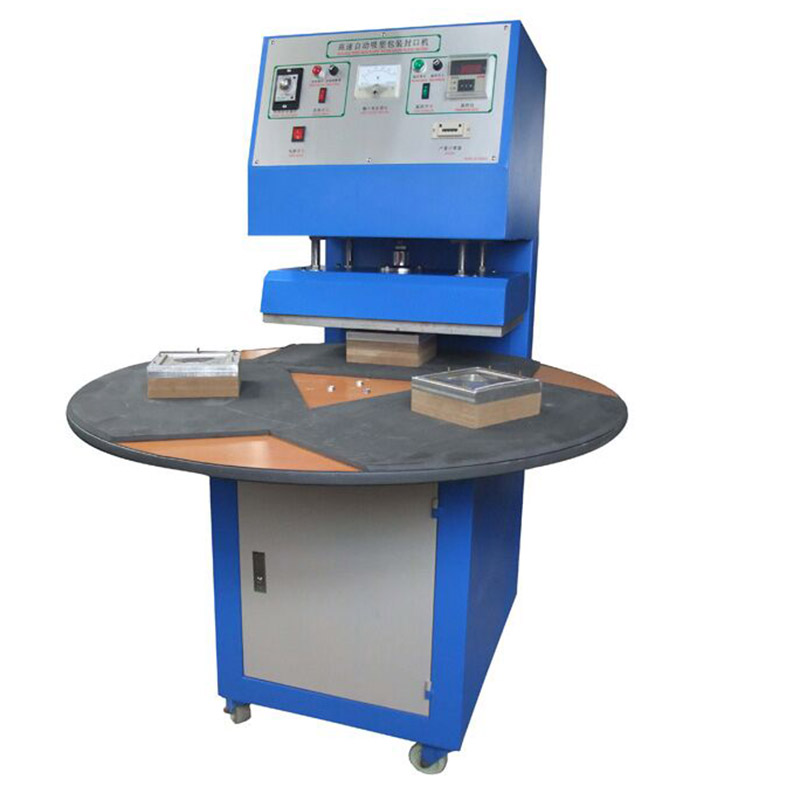

Name: Blister Sealing Machine 产品名称: 吸塑机 型号Item No.: BS5030 This machine is based on the theory of adjust ability of electricity generator's heat,using pneumatic componets to drive pressing board to comnine the card board with plastic-absorbing material like PVC PE and PP.It is easy to control,convenient and high efficient,it's widely used in hardware, department stores, tools, components, products, medical equipment and other industries.
Functions:
Wheel disk design
Requires 3 moulds to work continuously in one machine
Working with air compressor
Electrical relay controls sealing and pressing time
Inductive switch
Mold price is not included

Model                  BS5030                     BS3180                   BS5070(2 mold)
Press plate area       500x300mm                  540x380mm                700x500mm
Pressure                0.24T                      0.35T                    0.35T
Capacity               10pcs/min                  10pcs/min                10pcs/min
Stroke                 200mm                      200mm                    200mm
Voltage                220V                       220V                     220v
Transformer Power      1KW                        2KW                      2KW
Air pressure           0.4-0.8Mpa                 0.4-0.8Mpa               0.4-0.8Mpa
Dimension              650x560x1200mm             950x620x1410mm           1050x720x1600mm
Weight                 90KG                       100KGS                   150KGS

There is another model UBS5030 which is top heating blister sealer,sealing the whole contact surface between blister and cardboard.

转盘式设计
一台机器需要3副模具以包装不间断工作
气动控制，需要外接空气压缩机
时间继电器控制封口和下压时间
感应开关控制机器运行
模具价格另算

技术参数
型号        BS5030                     BS3180                   BS5070(2副模具)
压板面积    500x300mm                  540x380mm                700x500mm
压力        0.24T                      0.35T                    0.35T
包装速度    10pcs/min                  10pcs/min                10pcs/min
压板行程    200mm                      200mm                    200mm
电源电压    220V                       220V                     220v
变压器功率  1KW                        2KW                      2KW
气压压力   0.4-0.8Mpa                 0.4-0.8Mpa               0.4-0.8Mpa
机器尺寸   650x560x1200mm             950x620x1410mm           1050x720x1600mm
重量       90KG                        100KGS                    150KGS
