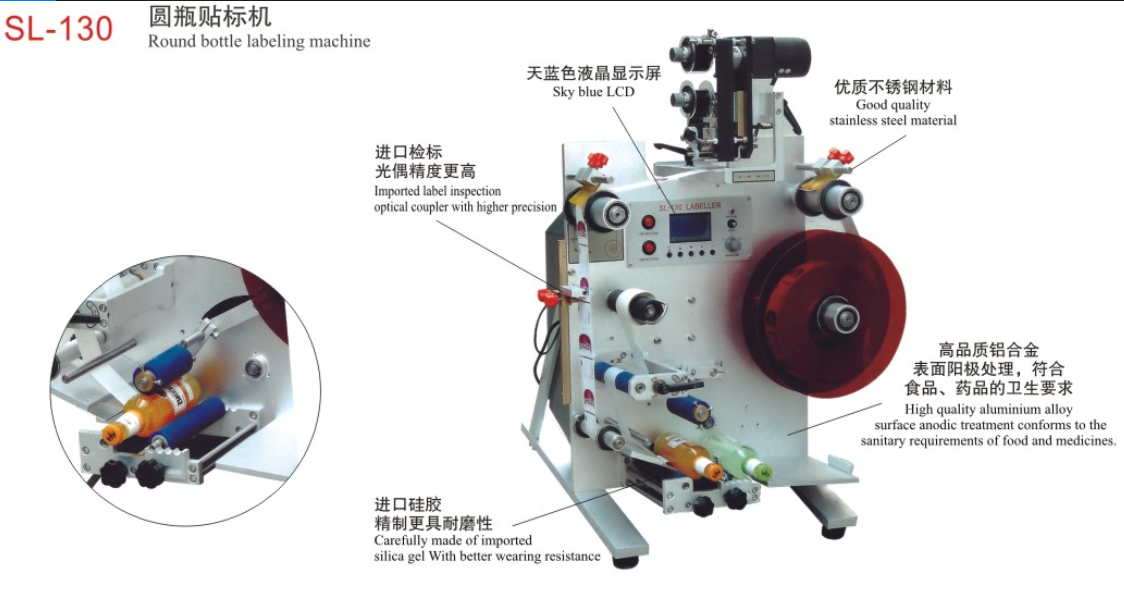

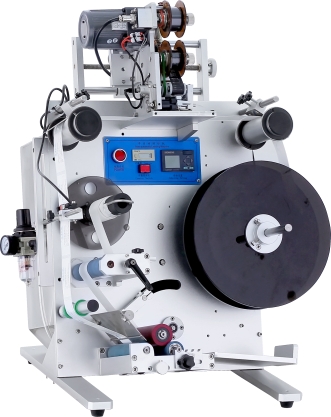

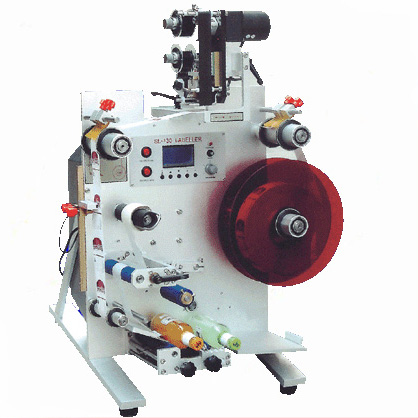

Round Bottle Labeling Machine
Name: Round Bottle Labeling Machine
产品名称: 圆瓶贴标机
型号Item No.: SL-130
This machine is applied to the labeling of round bottle such as glass bottles,plastic bottles,cans and so on.
MODEL SL-130
Power supply AC220V/50HZ
Power consumption 150W
Label dimension L:30-400xW:10-120mm
Round bottle diameter 20-125mm
Label inner dimension Internal diameter:75mm external diameter:300mm
Machine size 580×680×860mm
Machine weight 45KGS
*Adopt imported electromagnetic clutch with high precision.
*High class aluminium alloy anodic trestment has long service lift.
*Adopt famous factory electric engine to ensure high load and long period operation.
*All parts and standardized components are carefully made by adopting stainless steel.
*With PLC control panel,liquid crystal dispalay has the sensor of the times.
MODEL SL-130
Power supply AC220V/50HZ
Power consumption 150W
Label dimension L:30-400xW:10-120mm
Round bottle diameter 20-125mm
Label inner dimension Internal diameter:75mm external diameter:300mm
Machine size 580×680×860mm
Machine weight 45KGS
*Adopt imported electromagnetic clutch with high precision.
*High class aluminium alloy anodic trestment has long service lift.
*Adopt famous factory electric engine to ensure high load and long period operation.
*All parts and standardized components are carefully made by adopting stainless steel.
*With PLC control panel,liquid crystal dispalay has the sensor of the times.
*Imported label inspection optical coupler canensure high precision.
适用于量少而品种繁多的圆瓶容器的贴标、打码，如：玻璃瓶、塑料瓶、铁罐头等。
*采用进口电磁离合器，精准度高
*高级铝合金阳极处理，寿命更长
*采用名厂电机可满足大负荷，长时间运转
*所有零部件及标准间均采用不锈钢材料精制而成
*PLC控制面板，液晶显示更具时代感
*进口检表光偶，包装高精准度
技术参数
型号 SL-130
电源电压 AC 220V/50HZ
功率 150W
标签尺寸 长度：30-400MM 宽度：10-120MM
圆瓶直径 20-125MM
标签内芯尺寸 内径：75MM 外径：300MM
整机尺寸 580×680×860mm
整机净重 45KGS
